Pacific Seals® - Advanced Ceramics
HIGH-QUALITY ADVANCED CERAMICS MANUFACTURER
Pacific Seals® High Quality Silicon Carbide & Tungsten Carbide Manufacturer located in Mexico.
Pacific Seal Industry S.A de C.V is a ISO 9001:2015 certified company located in Mexico and with over 24 years of professional experience we have been providing Top quality in silicon carbide components to our clients internationally. With a large production capacity and Cost-effective prices we currently supply Advanced Ceramics components for our customers in the most demanding industries like Mining, Automotive, Chemical and Mechanical Seals.
Sintered Silicon & Tungsten Carbide
Pacific Seals® - Sintered Silicon Carbide engineered ceramics have many excellent functions and advantages like:
- High-hardness
- High-thermal Consistency
- Very Good Resistance at High Temperatures
- Low Thermal Expansion
- Electrical Conductivity
- Acts as a Semiconductor
- Nonlinear Electrical Resistance
- Acts as Alloying Additive
Industries
Automotive industry
We manufacture silicon carbide componets specialized for power transmision in Automotive Industry, like bushings
Mining Industry
Pacific seals - engineering ceramics specialized for mining industry, Wear plates, Seal Rings, Bushings and more.
Mechanical Seals
We manufacture any kind and size of Rotary and stationary seal faces for mechanical seals used in sealsing Pumping equipment.
Stock Service for
Fast Deliveries
We can offer you a Free Stock Service in order to provide Fast deliveries and reduce your storage costs
Manufacturer
Price
We manufacture all of our products, which allows us to offer you High-quality and Cost-effective prices tailored to your needs.
100% Made in Mexico
USMCA / CUSMA supplier.
100% Made in Mexico with
Certificate of Origin.
Large Production Capacity
We have an installed capacity of over
500 thousand pieces
of annual production,
with sizes up to 12" ID.
ISO 9001:2015 Certified Company
We are ISO 9001: 2015 certified company in order to offer reliable, high-quality products.
Silicon Carbide Ceramic Bushings
Silicon carbide sic bushing is a new type of high-tech and wear-resistant material in the world. It was made of high-purity silicon carbide powder, high-purity high-temperature carbon black and binders,by pouring, blanking, sintering, and sand-removing processes,made of a composite high wear product.
It is currently used as a bushing in mining equipment,such as copper, gold, iron ore,nickel ore and other in non-ferrous metals.It plays a role of high wear resistance,the wear life is more than 10 times that of conventional steel bushings and alumina bushing.
Application of sic bushing in the mining industry
For mine filling, the concentrate powder and tailings transportation has serious wear on the pipeline.The service life of the ore powder conveying pipeline used in the past is less than one year, and now choose silicon carbide bushings can increase the service life by more than 10 times.
- High attenuation performance, low thermal expansion, high thermal shock resistance, high temperature creep resistance
- Chemical stability, corrosion resistance, especially hydrofluoric acid resistance
- High-temperature resistance, maximum operating temperature up to 1380 ℃ (2500 ℉)
- Long service life and reduce overall investment cost
The four main application areas of silicon carbide
Silicon carbide is mainly used for functional ceramics, advanced refractory materials, abrasives and metallurgical raw materials.
- Silicon carbide is used as an abrasive. Mainly because silicon carbide has high hardness, chemical stability and certain toughness, silicon carbide can be used to manufacture consolidated abrasives, coated abrasives and free grinding, so as to process glass, ceramics, stone, cast iron and Some non-ferrous metals, hard alloys, titanium alloys, high-speed steel tools and grinding wheels.
- Silicon carbide is used as a refractory and corrosion-resistant material. Mainly because silicon carbide has a high melting point (decomposition degree), chemical inertness, and thermal shock resistance, silicon carbide can be used for sheds and saggers in kilns for grinding tools, ceramic products, and vertical cylinders for zinc smelting industry A variety of silicon carbide ceramic products, such as silicon carbide bricks, aluminum electrolytic cell liners, crucibles, and small furnace materials for distillation furnaces.
- Silicon carbide is used as a chemical material. Because silicon carbide can decompose in molten steel and react with the oxygen and metal oxides in the molten steel to form carbon monoxide and silicon-containing slag. Therefore, it can be used as a purifying agent for smelting iron and steel, that is, as a deoxidizing agent for steel making and a structure modifier for cast iron. This generally uses low-purity silicon carbide to reduce costs. At the same time, it can also be used as a raw material for manufacturing silicon tetrachloride.
- Silicon carbide is used as an electrical material. Used as heating element, nonlinear resistance element and high semiconductor material. Heating elements such as silicon carbon rods (applicable to various electric furnaces operating at 1100 to 1500°C), non-linear resistance elements, and various types of lightning protection valves.
- Other applications. It is formulated into far infrared radiation coating or silicon carbide silicon board for far infrared radiation dryer.
Silicon Carbide Seal Rings
Silicon carbide seal faces have the property of excellent resistant-corrosion, high mechanical strength, high thermal conductivity and good selflubrication.
Silicon carbide components are widely used in products such as gas seals, mechanical seals, propulsion shaft and slurry seals, etc.
High Quality Raw Material
We have High capacity production, with large-scale
dedicate sintering and reaction bonded silicon carbide furnace.
We are a ISO 9001:2015 Certified company to guarantee quality reliable high quality products.
Our dedicated research and development laboratory works together with our quality control department to ensure our materials according to industry standards.

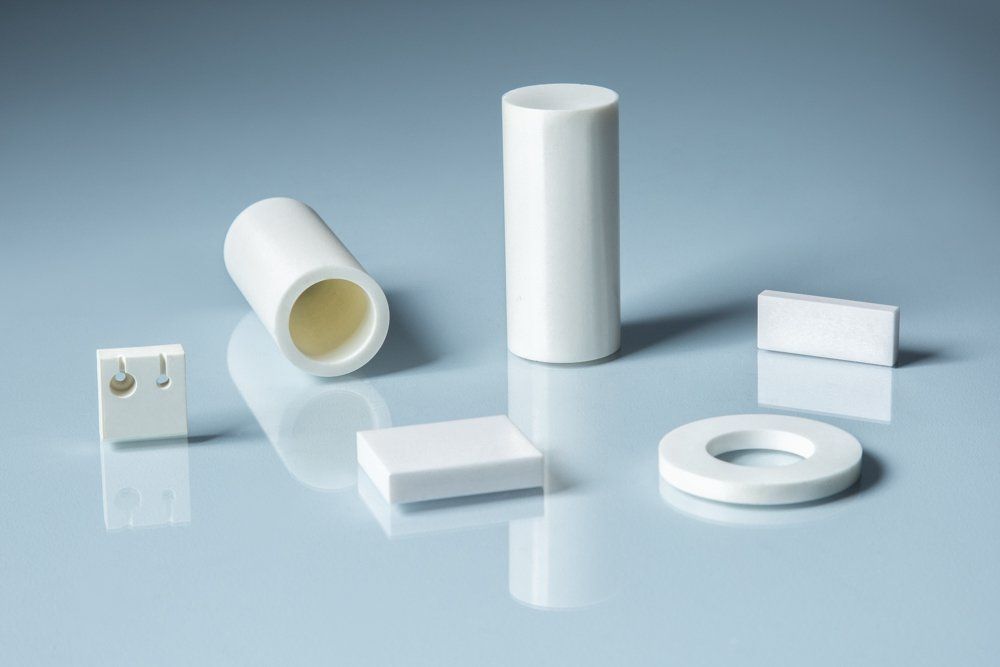

Alumina (Al₂O₃) Ceramic Components
Alumina Ceramic – Alumina Oxide is a very hard, dense material of exceptional strength. Alumina ceramic exhibits resistance to both high temperature and corrosion.
Electrical properties of alumina ceramic aluminum oxide include high volume resistivity as well as low loss characteristics at high frequencies. Alumina ceramic (Al₂O₃) properties are enhanced to meet most engineering requirements. Applications for alumina oxide ceramic include pump seals, temperature sensors, knife sharpeners and refractory anchors.
