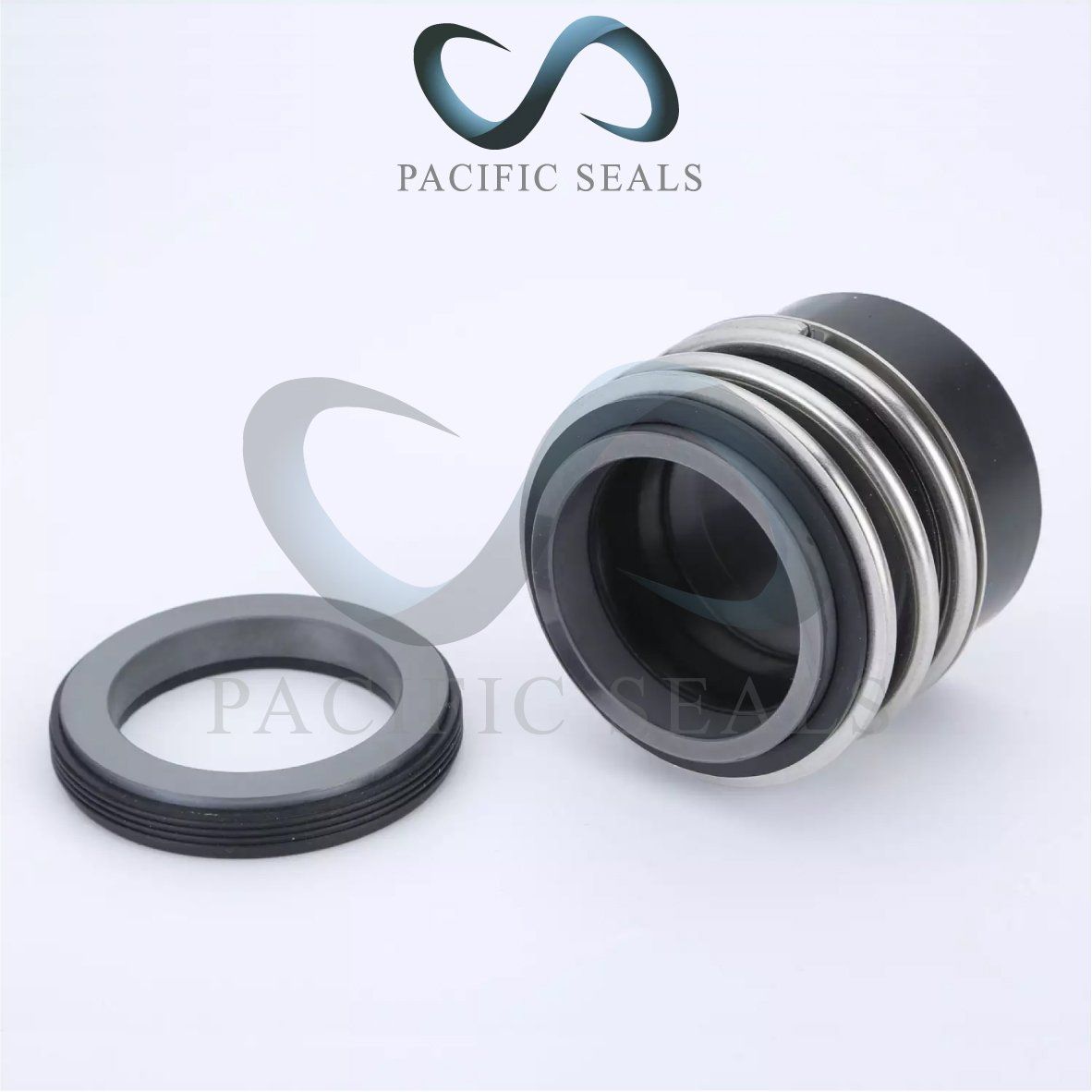

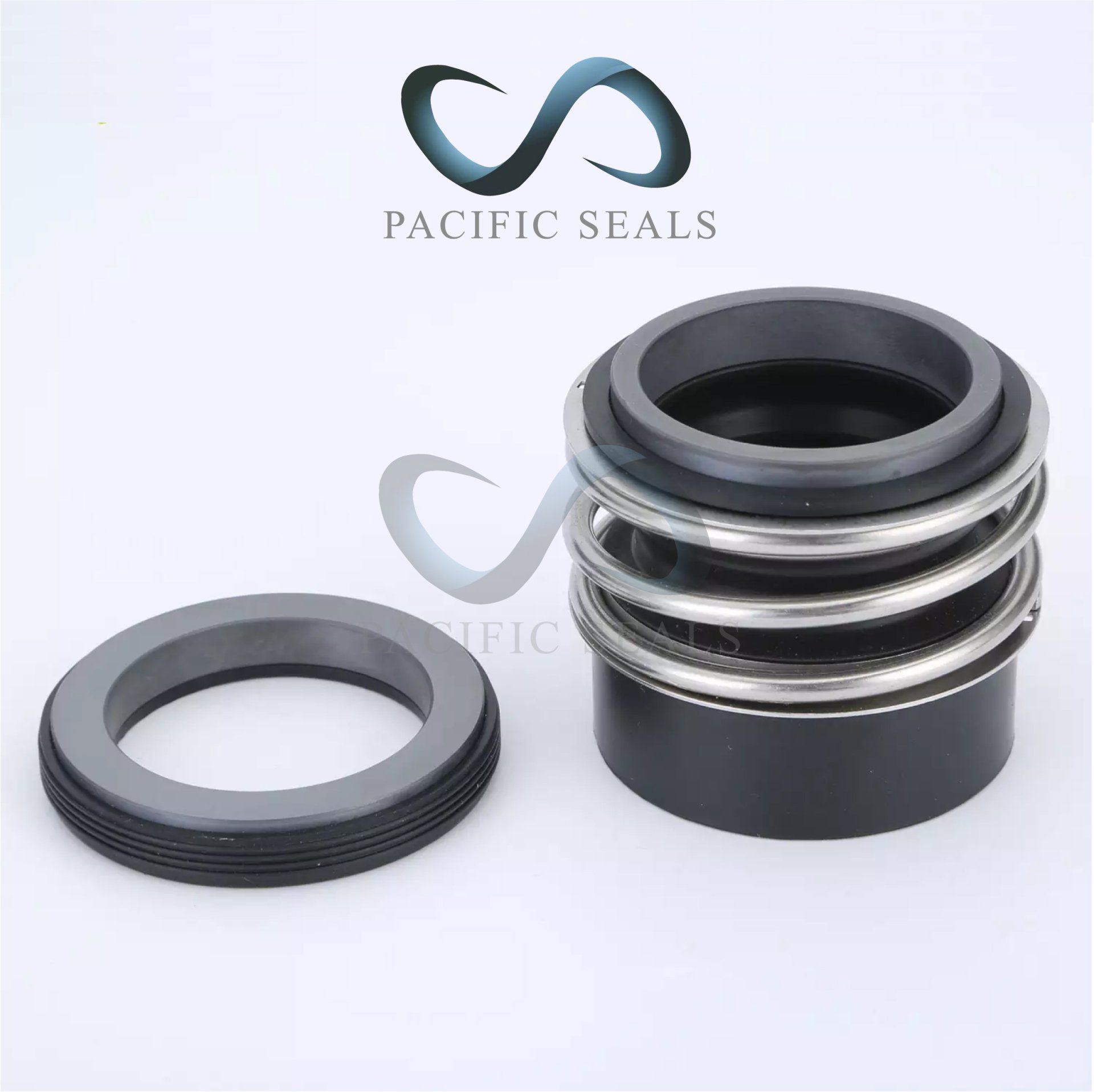

Mechanical Seal Type MG

Pacific Seals®- Mechanical Seal type MG

Equivalent to Burgmann® MG

 TYPE MG-1, MG-12, MG-13
These seals have shaft protection over the entire seal length. The special bellows design protect the seal face during installation. It is insensitive to shaft deflections due to large axial movement ability. Also suitable for low-end sterile applications.



MG-12 offers same dimensions, items and designations as MG1, but also provides an extended bellows tail to achieve the fitting length. MG-13 provides even longer extended bellows tail than MG-12 to cover long shafts.


Materials

  • Rotary Face: Silicon Carbide, Tungsten Carbide, Carbon Graphite
  • Stationary Seats: Silicon Carbide, Alumina Ceramic, Carbon Graphite
  • Bellows: Buna, Viton, EPDM, Aflas, Neoprene
  • Metal parts: 304 SS standard or 316 SS option available


Features

  • For plain shafts
  • Single and dual seal
  • Elastomer bellows rotating
  • Balanced
  • Independent of direction of rotation
  • No torsion on bellows

Advantages

  • Shaft protection over entire seal length
  • Protection of seal face during installation due to special bellows design
  • Insensitive to shaft deflections due to large axial movement ability
  • Universal application opportunities
  • High flexibility due to wide offer on materials
  • Suitable for low-end sterile applications
  • Dimension adaptions and additional seats available
